| DESCRIPTION: |
| MC-TECH's MHC Series 3dB Hybrid couplers are offered for the frequency range of 0.5 to 40 GHz. The standard coupling levels are 3, 6, 10, 30 and 40 dB with full waveguide operational bandwidth. The high directivity is achieved via low VSWR built-in termination. The couplers are typically used for power sampling or frequency monitoring with minimum signal loss on the main transmitting path. The multi-hole couplers are especially used in the test setups where power reflection measurement is required. |
| |
| SPECIFICATIONS: |
| 90° |
| Model Number |
Frequency
Range
(MHz) |
Insertio
n
Loss
(dB) |
Coupling
(dB) |
Isolation
(dB)
Min. |
Power
Avg
(W)
Max. |
VSWR
Max. |
Connector
Type |
Case
Type
LXWXH
(mm) |
| MHCU501U222T |
500-1000 |
0.2 |
3±1.0 |
22 |
100 |
1.2:1 |
SMA |
* |
| MHCU5070119K |
500-7000 |
1.3 |
3±1.0 |
19 |
20 |
1.30:1 |
SMA-F |
207x32x13 |
| MHCU8U9U425S |
800-960 |
0.4 |
3±1.0 |
25 |
150 |
1.2:1 |
N-F |
144x62x32 |
| MHCU801U325T |
800-1000 |
0.3 |
3±1.0 |
25 |
250 |
1.2:1 |
N-F |
88x40x34 |
| MHCU802U423H |
800-2500 |
0.45 |
3±0.6 |
23 |
100 |
1.2:1 |
N-F |
* |
| MHCU803U620T |
800-3000 |
0.6 |
3±1.0 |
20 |
100 |
1.3:1 |
SMA |
* |
| MHCU8U8U320T |
870-880 |
0.3 |
3±1.0 |
20 |
450 |
1.15:1 |
N-F |
124x76x15 |
| MHCU8U80320S |
870-880 |
3.5 |
3±1.0 |
20 |
100 |
1.3:1 |
SMA |
95x75x25 |
| MHCU9U90320S |
935-960 |
3.5 |
3±1.0 |
20 |
100 |
1.3:1 |
SMA |
95x75x25 |
| MHCU9U9U320T |
935-960 |
0.3 |
3±1.0 |
20 |
450 |
1.15:1 |
N-F |
122x82x15 |
| MHC0102U222T |
1000-2000 |
0.2 |
3±1.0 |
22 |
100 |
1.2:1 |
SMA |
* |
| MHC0104U820T |
1000-4000 |
0.8 |
3±1.0 |
20 |
100 |
1.3:1 |
SMA |
* |
| MHC01120120K |
1000-12400 |
1.4 |
3±1.0 |
20 |
20 |
1.30:1 |
SMA-F |
118x32x13 |
| MHC01180217K |
1000-18000 |
2 |
3±1.0 |
17 |
20 |
1.35:1 |
SMA-F |
119x32x13 |
| MHC0103U222T |
1500-3000 |
0.2 |
3±1.0 |
22 |
100 |
1.2:1 |
SMA |
* |
| MHC0102U325T |
1700-2200 |
0.3 |
3±1.0 |
25 |
250 |
1.2:1 |
N-F |
63x40x23 |
| MHC0101U320T |
1710-1880 |
0.3 |
3±1.0 |
20 |
450 |
1.15:1 |
N-F |
108x67.5x15 |
| MHC01010320S |
1805-1880 |
3.5 |
3±1.0 |
20 |
100 |
1.3:1 |
SMA |
95x56x33 |
| MHC01010323S |
1805-1880 |
3.2 |
3±1.0 |
23 |
250 |
1.15:1 |
N-F |
84x62x32 |
| MHC01010325S |
1880-1920 |
3.2 |
3±1.0 |
25 |
100 |
1.15:1 |
N-F |
60x60x24 |
| MHC01010120T |
1900-1920 |
1 |
3±1.0 |
20 |
100 |
1.21:1 |
N-F |
158x95x33 |
| MHC0204U222T |
2000-4000 |
0.2 |
3±1.0 |
22 |
100 |
1.2:1 |
SMA |
* |
| MHC02060116T |
2000-6000 |
1.2 |
3±1.0 |
16 |
100 |
1.5:1 |
SMA |
* |
| MHC0208U619K |
2000-8000 |
0.65 |
3±1.0 |
19 |
20 |
1.25:1 |
SMA-F |
72x28x10 |
| MHC02180117K |
2000-18000 |
1.4 |
3±1.0 |
17 |
20 |
1.35:1 |
SMA-F |
72x28x13 |
| MHC02180115T |
2000-18000 |
1.8 |
3±1.0 |
15 |
30 |
1.5:1 |
SMA |
* |
| MHC0205U222T |
2600-5200 |
0.2 |
3±1.0 |
22 |
100 |
1.2:1 |
SMA |
* |
| MHC0408U318T |
4000-8000 |
0.35 |
3±1.0 |
18 |
100 |
1.35:1 |
SMA |
* |
| MHC06180116T |
6000-18000 |
1.5 |
3±1.0 |
16 |
30 |
1.6:1 |
SMA |
* |
| MHC06200114K |
6000-20000 |
1 |
3±1.0 |
14 |
20 |
1.45:1 |
SMA-F |
32x22x11 |
| MHC10400212K |
10000-40000 |
2 |
3±1.0 |
12 |
20 |
1.80:1 |
K-F |
25x16x13 |
|
OTHER FREQUENCIES AND DIVIDERS ARE ALSO AVAILABLE
* CONSULT THE FACTORY |
| 180° |
| Model Number |
Frequency
Range
(MHz) |
Insertio
n
Loss
(dB) |
Coupling
(dB) |
Isolation
(dB)
Min. |
Power
Avg
(W)
Max. |
VSWR
Max. |
Connector
Type |
Case
Type
LXWXH
(mm) |
| MHC01120217K |
1000-12400 |
2.1 |
3±1.0 |
17 |
20 |
1.60:1 |
SMA-F |
140x34x10 |
| MHC01180215K |
1000-18000 |
2.9 |
3±1.0 |
15 |
20 |
1.70:1 |
SMA-F |
140x34x10 |
| MHC02080118K |
2000-8000 |
1.1 |
3±1.0 |
18 |
20 |
1.40:1 |
SMA-F |
83x34x10 |
| MHC02180215K |
2000-18000 |
2 |
3±1.0 |
15 |
20 |
1.70:1 |
SMA-F |
77x34x10 |
| MHC0412U917K |
4000-12400 |
0.9 |
3±1.0 |
17 |
20 |
1.60:1 |
SMA-F |
48x32x10 |
| MHC06200115K |
6000-20000 |
1.2 |
3±1.0 |
15 |
20 |
1.70:1 |
SMA-F |
38x32x10 |
| MHC06260114K |
6000-26500 |
1.6 |
3±1.0 |
14 |
20 |
1.70:1 |
SMA-F |
40x40x10 |
|
| OTHER FREQUENCIES AND DIVIDERS ARE ALSO AVAILABLE |

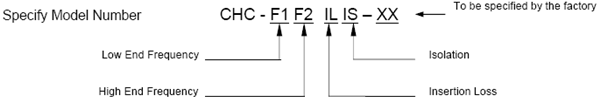

| HOW TO ORDER: |
 |
| |
| Example:To order a 3dB Hybrid coupler with F1 at 1.8GHz and F2 at 1.9 GHz with Insertion Lossl of 3.2dB and a Power of 100W, specify MHC-010132100-XX. |
| |
