| DESCRIPTION: |
| MC-TECH's MDC Series multi-hole directional couplers are offered for the frequency range of 0.5 to 110 GHz in seven waveguide bands. The standard coupling levels are 3, 6, 10, 30 and 40 dB with full waveguide operational bandwidth. The high directivity is achieved via low VSWR built-in termination. The couplers are typically used for power sampling or frequency monitoring with minimum signal loss on the main transmitting path. The multi-hole couplers are especially used in the test setups where power reflection measurement is required. |
| |
| SPECIFICATIONS: |
| COAXIAL: |

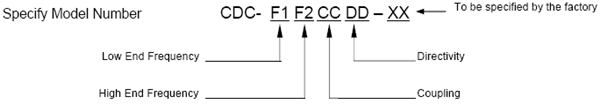

| Model Number |
Frequency
Range (MHz) |
Insertion
Loss(dB)
Max. |
Coupling (dB) |
Directivity (dB) |
Power
Avg (W)
Max. |
VSWR Max. |
Connector Type |
Case Type (mm) |
| MDCU5020620T |
500-2000 |
0.4 |
6±0.6 |
20 |
10 |
1.25:1 |
SMA |
139 x 16 x 10 |
| MDCU5021020T |
500-2000 |
0.5 |
10±0.8 |
20 |
30 |
1.25:1 |
SMA |
139 x 16 x 10 |
| MDCU5021520T |
500-2000 |
0.5 |
15±0.8 |
20 |
50 |
1.20:1 |
SMA |
139 x 16 x 10 |
| MDCU5022020T |
500-2000 |
0.4 |
20±1.0 |
20 |
50 |
1.20:1 |
SMA |
139 x 16 x 10 |
| MDCU5081015K |
500-8000 |
1.3 |
10±1.0 |
15 |
20 |
1.35:1 |
SMA |
133 x 18 x 13 |
| MDCU5081615K |
500-8000 |
0.85 |
16±1.0 |
15 |
20 |
1.35:1 |
SMA |
133 x 18 x 13 |
| MDCU5082015K |
500-8000 |
0.8 |
20±1.0 |
15 |
20 |
1.35:1 |
SMA |
133 x 18 x 13 |
| MDCU5181012K |
500-18500 |
1.5 |
10±1.0 |
12 |
20 |
1.35:1 |
SMA |
111 x 18.5 x 13 |
| MDCU5181612K |
500-18500 |
1.1 |
16±1.0 |
12 |
20 |
1.35:1 |
SMA |
111 x 18.5 x 13 |
| MDCU5201015K |
500-20000 |
1.65 |
10±1.0 |
15 |
20 |
1.35:1 |
SMA |
114 x 18 x 13 |
| MDCU5201315K |
500-20000 |
1.4 |
13±1.0 |
15 |
20 |
1.35:1 |
SMA |
114 x 18 x 13 |
| MDCU5261313K |
500-26500 |
1.5 |
13±1.0 |
13 |
20 |
1.45:1 |
SMA |
111 x 18.5 x 9.6 |
| MDCU6261013K |
600-26500 |
1.3 |
10±0.5 |
13 |
20 |
1.40:1 |
3.5mm-F |
28.4 x 16 x 13 |
| MDCU6262014K |
600-26500 |
0.8 |
20±1.0 |
14 |
20 |
1.40:1 |
3.5mm-F |
28.4 x 16 x 13 |
| MDCU6263014K |
600-26500 |
0.7 |
30±1.0 |
14 |
20 |
1.45:1 |
3.5mm-F |
28.4 x 16 x 13 |
| MDCU8020320H |
800-2500 |
0.4 |
3±0.6 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU8020522B |
800-2500 |
0.15 |
5±0.6 |
22 |
- |
1.2:1 |
SMA |
168 x 74 x 32.5 |
| MDCU8020522B1 |
800-2500 |
0.15 |
5±0.6 |
22 |
- |
1.2:1 |
N-F |
156 x 58 x 16.5 |
| MDCU8020520H |
800-2500 |
0.4 |
5±0.6 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU8020500T |
800-2500 |
2.2 |
5±0.5 |
- |
30 |
1.25:1 |
N-F |
100 x 25 x 25 |
| MDCU8020620H |
800-2500 |
0.4 |
6±0.6 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU8020600T |
800-2500 |
1.9 |
6±0.5 |
- |
30 |
1.25:1 |
N-F |
100 x 25 x 25 |
| MDCU8020720H |
800-2500 |
0.4 |
7±0.6 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU8020700T |
800-2500 |
1.4 |
7±0.5 |
- |
30 |
1.25:1 |
N-F |
100 x 25 x 25 |
| MDCU8020820H |
800-2500 |
0.4 |
8±0.6 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU8021022B |
800-2500 |
0.15 |
10±0.8 |
22 |
- |
1.2:1 |
N-F |
156 x 58 x 16.5 |
| MDCU8021022B1 |
800-2500 |
0.15 |
10±0.8 |
22 |
- |
1.2:1 |
SMA |
168 x 74 x 32.5 |
| MDCU8021000T |
800-2500 |
0.9 |
10±0.5 |
- |
50 |
1.25:1 |
N-F |
100 x 25 x 25 |
| MDCU8021020H |
800-2500 |
0.4 |
10±1.0 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU8021220H |
800-2500 |
0.4 |
12±1.0 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU8021522B |
800-2500 |
0.15 |
15±0.8 |
22 |
- |
1.2:1 |
N-F |
156 x 58 x 16.5 |
| MDCU8021522B1 |
800-2500 |
0.15 |
15±0.8 |
22 |
- |
1.2:1 |
SMA |
168 x 74 x 32.5 |
| MDCU8021520H |
800-2500 |
0.4 |
15±1.0 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU8021500T |
800-2500 |
0.5 |
15±1.0 |
- |
50 |
1.25:1 |
N-F |
100 x 25 x 25 |
| MDCU8022022B |
800-2500 |
0.15 |
20±1.0 |
22 |
- |
1.2:1 |
N-F |
156 x 58 x 16.5 |
| MDCU8022022B1 |
800-2500 |
0.15 |
20±1.0 |
22 |
- |
1.2:1 |
SMA |
168 x 74 x 32.5 |
| MDCU8022020H |
800-2500 |
0.4 |
20±1.0 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU8022000T |
800-2500 |
0.4 |
20±1.0 |
- |
50 |
1.25:1 |
N-F |
100 x 25 x 25 |
| MDCU8022520H |
800-2500 |
0.4 |
25±1.0 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU8023022B |
800-2500 |
0.15 |
30±1.0 |
22 |
- |
1.2:1 |
N-F |
156 x 58 x 16.5 |
| MDCU8023022B1 |
800-2500 |
0.15 |
30±1.0 |
22 |
- |
1.2:1 |
SMA |
168 x 74 x 32.5 |
| MDCU8023020H |
800-2500 |
0.4 |
30±1.0 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU8024022B |
800-2500 |
0.15 |
40±1.0 |
22 |
- |
1.2:1 |
N-F |
156 x 58 x 16.5 |
| MDCU8024022B1 |
800-2500 |
0.15 |
40±1.0 |
22 |
- |
1.2:1 |
SMA |
168 x 74 x 32.5 |
| MDCU8025022B |
800-2500 |
0.15 |
50±1.0 |
22 |
- |
1.2:1 |
N-F |
156 x 58 x 16.5 |
| MDCU8025022B1 |
800-2500 |
0.15 |
50±1.0 |
22 |
- |
1.2:1 |
SMA |
168 x 74 x 32.5 |
| MDC01040620T |
1000-4000 |
0.4 |
6±1.0 |
20 |
10 |
1.25:1 |
SMA |
77 x 16 x 10 |
| MDC01041020T |
1000-4000 |
0.5 |
10±1.0 |
20 |
30 |
1.25:1 |
SMA |
77 x 16 x 10 |
| MDC01041520T |
1000-4000 |
0.5 |
15±1.0 |
20 |
50 |
1.20:1 |
SMA |
77 x 16 x 10 |
| MDC01042020T |
1000-4000 |
0.4 |
20±1.0 |
20 |
50 |
1.20:1 |
SMA |
77 x 16 x 10 |
| MDC01181016K |
1000-18000 |
1.3 |
10±1.0 |
16 |
20 |
1.35:1 |
SMA |
88 x 18.5 x 13 |
| MDC01181616K |
1000-18000 |
0.9 |
16±1.0 |
16 |
20 |
1.35:1 |
SMA |
88 x 18.5 x 13 |
| MDC01201016K |
1000-20000 |
1.4 |
10±1.0 |
16 |
20 |
1.35:1 |
SMA |
88.9 x 18.5 x 13.4 |
| MDC01201616K |
1000-20000 |
1.1 |
16±1.0 |
16 |
20 |
1.35:1 |
SMA |
88.9 x 18.5 x 13.4 |
| MDC01202016K |
1000-20000 |
1.0 |
20±1.0 |
16 |
20 |
1.35:1 |
SMA |
88.9 x 18.5 x 13.4 |
| MDC01261014K |
1000-26500 |
1.6 |
10±1.0 |
14 |
20 |
1.4:1 |
3.5mm-F |
73 x 16 x 13 |
| MDC01262014K |
1000-26500 |
1.2 |
20±1.0 |
14 |
20 |
1.4:1 |
3.5mm-F |
73 x 16 x 13 |
| MDC01401010K |
1000-40000 |
2.0 |
10±1.0 |
10 |
20 |
1.7:1 |
2.4mm-F |
51 x 16.51 x 10 |
| MDC01401310K |
1000-40000 |
1.8 |
13±1.0 |
10 |
20 |
1.7:1 |
2.4mm-F |
51 x 16.51 x 10 |
| MDC01020520S |
1700-2500 |
0.4 |
5±0.5 |
20 |
50 |
1.3:1 |
N-F |
62 x 21 x 28 |
| MDC01020520H |
1700-2500 |
0.4 |
5±0.6 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01020620S |
1700-2500 |
0.4 |
6±0.5 |
20 |
50 |
1.3:1 |
N-F |
62 x 21 x 28 |
| MDC01020620H |
1700-2500 |
0.4 |
6±0.6 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01020720S |
1700-2500 |
0.4 |
7±0.5 |
20 |
50 |
1.3:1 |
N-F |
62 x 21 x 28 |
| MDC01020720H |
1700-2500 |
0.4 |
7±0.6 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01021020S |
1700-2500 |
0.4 |
10±0.5 |
20 |
50 |
1.3:1 |
N-F |
62 x 21 x 29 |
| MDC01021020H |
1700-2500 |
0.4 |
10±0.8 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01021220S |
1700-2500 |
0.4 |
12±0.7 |
20 |
50 |
1.3:1 |
N-F |
51 x 34 x 18 |
| MDC01021220H |
1700-2500 |
0.4 |
12±0.8 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01021520S |
1700-2500 |
0.4 |
15±0.7 |
20 |
50 |
1.3:1 |
N-F |
51 x 34 x 18 |
| MDC01021520H |
1700-2500 |
0.4 |
15±0.8 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01022020S |
1700-2500 |
0.4 |
20±0.7 |
20 |
50 |
1.3:1 |
N-F |
51 x 34 x 18 |
| MDC01022020H |
1700-2500 |
0.4 |
20±1.0 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01022520S |
1700-2500 |
0.4 |
25±1.0 |
20 |
50 |
1.3:1 |
N-F |
51 x 34 x 18 |
| MDC01022520H |
1700-2500 |
0.4 |
25±1.0 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01023020S |
1700-2500 |
0.4 |
30±1.0 |
20 |
50 |
1.3:1 |
N-F |
51 x 34 x 18 |
| MDC01023020H |
1700-2500 |
0.4 |
30±1.0 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01023520S |
1700-2500 |
0.4 |
35±1.0 |
20 |
50 |
1.3:1 |
N-F |
51 x 34 x 18 |
| MDC01023520H |
1700-2500 |
0.4 |
35±1.5 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01024020S |
1700-2500 |
0.4 |
40±1.0 |
20 |
50 |
1.3:1 |
N-F |
51 x 34 x 18 |
| MDC01024020H |
1700-2500 |
0.4 |
40±1.5 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01261014K |
1700-26500 |
1.5 |
10±1.0 |
14 |
20 |
1.45:1 |
3.5mm-F |
61 x 17.5 x 13.4 |
| MDC01261614K |
1700-26500 |
1.2 |
16±1.0 |
14 |
20 |
1.45:1 |
3.5mm-F |
61 x 17.5 x 13.4 |
| MDC02080620T |
2000-8000 |
0.4 |
6±1.0 |
20 |
10 |
1.25:1 |
SMA |
47 x 16 x 10 |
| MDC02081020T |
2000-8000 |
0.5 |
10±1.0 |
20 |
30 |
1.25:1 |
SMA |
47 x 16 x 10 |
| MDC02081520T |
2000-8000 |
0.5 |
15±1.0 |
20 |
50 |
1.20:1 |
SMA |
47 x 16 x 10 |
| MDC02082020T |
2000-8000 |
0.4 |
20±1.0 |
20 |
50 |
1.20:1 |
SMA |
47 x 16 x 10 |
| MDC02180616K |
2000-18000 |
1.9 |
6±1.0 |
16 |
20 |
1.30:1 |
SMA |
53 x 17.5 x 13 |
| MDC02181012T |
2000-18000 |
1.5 |
10±1.0 |
12 |
30 |
1.6:1 |
SMA |
68 x 24 x 10 |
| MDC02181512T |
2000-18000 |
1.5 |
15±1.0 |
12 |
30 |
1.6:1 |
SMA |
68 x 24 x 10 |
| MDC02182010T |
2000-18000 |
1.5 |
20±1.0 |
10 |
50 |
1.6:1 |
SMA |
68 x 24 x 10 |
| MDC02201016K |
2000-20000 |
1.3 |
10±1.0 |
16 |
20 |
1.35:1 |
SMA |
52.8 x 17.5 x 13 |
| MDC02201616K |
2000-20000 |
1.0 |
16±1.0 |
16 |
20 |
1.35:1 |
SMA |
52.8 x 17.5 x 13 |
| MDC02202016K |
2000-20000 |
0.9 |
20±1.0 |
16 |
20 |
1.35:1 |
SMA |
52.8 x 17.5 x 13 |
| MDC02401311K |
2000-40000 |
1.7 |
13±1.0 |
11 |
20 |
1.7:1 |
2.4mm-F |
44 x 16.5 x 10 |
| MDC02501010K |
2000-50000 |
2.0 |
10±1.0 |
10 |
20 |
1.8:1 |
2.4mm-F |
44 x 16.5 x 10 |
| MDC02501310K |
2000-50000 |
1.8 |
13±1.0 |
10 |
20 |
1.8:1 |
2.4mm-F |
44 x 16.5 x 10 |
| MDC02501610K |
2000-50000 |
1.7 |
16±1.0 |
10 |
20 |
1.8:1 |
2.4mm-F |
44 x 16.5 x 10 |
| MDC04121015K |
4000-12400 |
0.9 |
10±0.5 |
15 |
* |
1.35:1 |
SMA |
* |
| MDC04122015K |
4000-12400 |
0.5 |
20±1.0 |
15 |
* |
1.35:1 |
SMA |
* |
| MDC04181010T |
4000-18000 |
1.2 |
10±1.0 |
10 |
30 |
1.6:1 |
SMA |
38.5 x 16 x 10 |
| MDC04182010T |
4000-18000 |
0.7 |
20±1.0 |
10 |
50 |
1.6:1 |
SMA |
37 x 16 x 10 |
| MDC04200615K |
4000-20000 |
1.9 |
6±1.0 |
15 |
20 |
1.35:1 |
SMA |
35.5 x 16.7 x 10 |
| MDC04201015K |
4000-20000 |
1.0 |
10±1.0 |
15 |
20 |
1.35:1 |
SMA |
35.5 x 16.7 x 10 |
| MDC04202015K |
4000-20000 |
0.6 |
20±1.0 |
15 |
20 |
1.35:1 |
SMA |
35.5 x 16.7 x 10 |
| MDC06180615T |
6000-18000 |
1.0 |
6±1.0 |
15 |
10 |
1.5:1 |
SMA |
44 x 24 x 10 |
| MDC06181014T |
6000-18000 |
1.0 |
10±1.0 |
14 |
30 |
1.5:1 |
SMA |
44 x 24 x 10 |
| MDC06181512T |
6000-18000 |
1.0 |
15±1.0 |
12 |
50 |
1.5:1 |
SMA |
44 x 24 x 10 |
| MDC06182012T |
6000-18000 |
1.0 |
20±1.0 |
12 |
50 |
1.5:1 |
SMA |
44 x 24 x 10 |
| MDC10401010K |
10000-40000 |
1.7 |
10±0.7 |
10 |
20 |
1.7:1 |
2.4mm-F |
28 x 15 x 10 |
| MDC10402010K |
10000-40000 |
1.3 |
20±1.0 |
10 |
20 |
1.7:1 |
2.4mm-F |
28 x 15 x 10 |
| MDC10461010K |
10000-46000 |
1.9 |
10±0.7 |
10 |
20 |
1.8:1 |
2.4mm-F |
28 x 15 x 10 |
| MDC10462010K |
10000-46000 |
1.5 |
20±1.0 |
10 |
20 |
1.8:1 |
2.4mm-F |
28 x 15 x 10 |
| MDC10501010K |
10000-50000 |
1.9 |
10±0.7 |
10 |
20 |
1.8:1 |
2.4mm-F |
28 x 15 x 10 |
| MDC10502010K |
10000-50000 |
1.5 |
20±1.0 |
10 |
20 |
1.8:1 |
2.4mm-F |
28 x 15 x 10 |
| MDC18261014K |
18000-26500 |
1.3 |
10±0.5 |
14 |
* |
1.4:1 |
3.5mm-F |
* |
| DCD18262014K |
18000-26500 |
0.8 |
20±1.0 |
14 |
* |
1.4:1 |
3.5mm-F |
* |
| MDC18401012K |
18000-40000 |
1.7 |
10±0.7 |
12 |
* |
1.7:1 |
* |
* |
| MDC18402012K |
18000-40000 |
1.3 |
20±1.0 |
12 |
* |
1.7:1 |
* |
* |
| MDC18501010K |
18000-50000 |
1.9 |
10±0.7 |
10 |
* |
1.8:1 |
2.4mm-F |
* |
| MDC18502010K |
18000-50000 |
1.5 |
20±1.0 |
10 |
* |
1.8:1 |
2.4mm-F |
* |
| MDC26401012K |
26500-40000 |
1.7 |
10±0.7 |
12 |
* |
1.7:1 |
2.4mm-F |
* |
| MDC26402012K |
26500-40000 |
1.3 |
20±1.0 |
12 |
* |
1.7:1 |
2.4mm-F |
* |
| MDC26501010K |
26500-50000 |
1.9 |
10±0.7 |
10 |
* |
1.8:1 |
2.4mm-F |
* |
| MDC26502010K |
26500-50000 |
1.5 |
20±1.0 |
10 |
* |
1.8:1 |
2.4mm-F |
* |
|
OTHER FREQUENCIES ARE ALSO AVAILABLE.
*CONSULT THE FACTORY |
| |
| CAVITY: |
| Model Number |
Frequency
Range (MHz) |
Insertion
Loss(dB)
Max. |
Coupling (dB) |
Directivity (dB) |
Power
Avg (W)
Max. |
VSWR Max. |
Connector Type |
Case Type (mm) |
| MDCU8020520H |
800-2500 |
0.2 |
5±0.6 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDCU8020620H |
800-2500 |
0.2 |
6±0.6 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDCU8020620S |
800-2500 |
0.2 |
6±0.7 |
20 |
200 |
1.3:1 |
N-F |
120 x 40 x 17 |
| MDCU8020720H |
800-2500 |
0.2 |
7±0.6 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDCU8020720S |
800-2500 |
0.2 |
7±0.7 |
20 |
200 |
1.3:1 |
N-F |
120 x 40 x 17 |
| >MDCU8021020H |
>800-2500 |
>0.2 |
>10±0.6 |
>20 |
>200 |
>1.2:1 |
N-F |
* |
| >MDCU8021020S |
>800-2500 |
>0.2 |
>10±0.7 |
>20 |
>200 |
>1.3:1 |
N-F |
120 x 40 x 17 |
| >MDCU8021220S |
>800-2500 |
>0.2 |
>12±0.7 |
>20 |
>200 |
>1.3:1 |
N-F |
120 x 40 x 17 |
| >MDCU8021520S |
>800-2500 |
>0.2 |
>15±0.7 |
>20 |
>200 |
>1.3:1 |
N-F |
120 x 40 x 17 |
| >MDCU8021520H |
>800-2500 |
>0.2 |
>15±0.8 |
>20 |
>200 |
>1.2:1 |
N-F |
* |
| MDCU8022020S |
800-2500 |
0.2 |
20±0.7 |
20 |
200 |
1.3:1 |
N-F |
120 x 40 x 17 |
| MDCU8022020H |
800-2500 |
0.2 |
20±1.0 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDCU8022520H |
800-2500 |
0.2 |
25±1.0 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDCU8022520S |
800-2500 |
0.2 |
25±1.0 |
20 |
200 |
1.3:1 |
N-F |
120 x 40 x 17 |
| MDCU8023020S |
800-2500 |
0.2 |
30±1.0 |
20 |
200 |
1.3:1 |
N-F |
120 x 40 x 17 |
| MDCU8023020H |
800-2500 |
0.2 |
30±1.5 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDCU8023520S |
800-2500 |
0.2 |
35±1.0 |
20 |
200 |
1.3:1 |
N-F |
120 x 40 x 17 |
| MDCU8023520H |
800-2500 |
0.2 |
35±1.5 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDCU8024020S |
800-2500 |
0.2 |
40±1.0 |
20 |
200 |
1.3:1 |
N-F |
120 x 40 x 17 |
| MDCU8024020H |
800-2500 |
0.2 |
40±1.5 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDCU8024520H |
800-2500 |
0.2 |
45±2.0 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDCU8025020H |
800-2500 |
0.2 |
50±2.0 |
20 |
200 |
1.2:1 |
N-F |
* |
| >MDC01020520S |
>1700-2500 |
>0.2 |
>5±0.5 |
>20 |
>200 |
>1.3:1 |
N-F |
58 x 19 x 21 |
| >MDC01020520H |
>1700-2500 |
>0.2 |
>5±0.6 |
>20 |
>200 |
>1.2:1 |
N-F |
* |
| >MDC01020620S |
>1700-2500 |
>0.2 |
>6±0.5 |
>20 |
>200 |
>1.3:1 |
N-F |
58 x 19 x 21 |
| >MDC01020620H |
>1700-2500 |
>0.2 |
>6±0.6 |
>20 |
>200 |
>1.2:1 |
N-F |
* |
| >MDC01020720S |
>1700-2500 |
>0.2 |
>7±0.5 |
>20 |
>200 |
>1.3:1 |
N-F |
58 x 19 x 21 |
| MDC01020720H |
1700-2500 |
0.2 |
7±0.6 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDC01021020S |
1700-2500 |
0.2 |
10±0.5 |
20 |
200 |
1.3:1 |
N-F |
58 x 20 x 21 |
| MDC01021020H |
1700-2500 |
0.2 |
10±0.8 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDC01021220S |
1700-2500 |
0.2 |
12±0.5 |
20 |
200 |
1.3:1 |
N-F |
58 x 25 x 21 |
| MDC01021220H |
1700-2500 |
0.2 |
12±0.8 |
20 |
200 |
1.2:1 |
N-F |
* |
| >MDC01021520S |
>1700-2500 |
>0.2 |
>15±0.5 |
>20 |
>200 |
>1.3:1 |
N-F |
58 x 25 x 21 |
| >MDC01021520H |
>1700-2500 |
>0.2 |
>15±0.8 |
>20 |
>200 |
>1.2:1 |
N-F |
* |
| >MDC01022020S |
>1700-2500 |
>0.2 |
>20±0.5 |
>20 |
>200 |
>1.3:1 |
N-F |
58 x 29 x 21 |
| >MDC01022020H |
>1700-2500 |
>0.2 |
>20±1.0 |
>20 |
>200 |
>1.2:1 |
N-F |
* |
| >MDC01022520S |
>1700-2500 |
>0.2 |
>25±0.5 |
>20 |
>200 |
>1.3:1 |
N-F |
58 x 29 x 21 |
| MDC01022520H |
1700-2500 |
0.2 |
25±1.0 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDC01023020S |
1700-2500 |
0.2 |
30±0.5 |
20 |
200 |
1.3:1 |
N-F |
58 x 29 x 21 |
| MDC01023020H |
1700-2500 |
0.2 |
30±1.0 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDC01023520S |
1700-2500 |
0.2 |
35±0.5 |
20 |
200 |
1.3:1 |
N-F |
58 x 29 x 21 |
| MDC01023520H |
1700-2500 |
0.2 |
35±1.5 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDC01024020H |
1700-2500 |
0.2 |
40±1.5 |
20 |
200 |
1.2:1 |
N-F |
* |
| MDC01025020H |
1700-2500 |
0.2 |
50±1.5 |
20 |
200 |
1.2:1 |
N-F |
* |
|
OTHER FREQUENCIES ARE ALSO AVAILABLE.
*CONSULT THE FACTORY |
| |
| HIGH POWER BI-DIRECTIONAL: |
| Model Number |
Frequency
Range (MHz) |
Insertion
Loss(dB) Max. |
Coupling (dB) |
Directivity (dB) |
Power
Avg (W) Max. |
VSWR Max. |
Connector Type |
Case Type
(mm) |
| MDCU7012020T |
700-1100 |
0.4 |
20±1.0 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDCU7013020T |
700-1100 |
0.4 |
30±1.0 |
20 |
150 |
1.2:1 |
N-F |
* |
| MDCU7014020T |
700-1100 |
0.4 |
40±1.0 |
20 |
150 |
1.2:1 |
N-F |
* |
| MDCU7015020T |
700-1100 |
0.4 |
50±1.0 |
20 |
150 |
1.2:1 |
N-F |
* |
| MDC01022020T |
1700-2500 |
0.4 |
20±1.0 |
20 |
100 |
1.2:1 |
N-F |
* |
| MDC01023020T |
1700-2500 |
0.4 |
30±1.0 |
20 |
150 |
1.2:1 |
N-F |
* |
| MDC01024020T |
1700-2500 |
0.4 |
40±1.0 |
20 |
150 |
1.2:1 |
N-F |
* |
| MDC01025020T |
1700-2500 |
0.4 |
50±1.0 |
20 |
150 |
1.2:1 |
N-F |
* |
|
OTHER FREQUENCIES ARE ALSO AVAILABLE.
*CONSULT THE FACTORY |
| |
| WAVEGUIDE: |
| Waveguide Band |
K |
Kb |
Ka |
Q |
U |
V |
E |
W |
| Frequency Range (GHz) |
18 to 26.5 |
22 to 33.0 |
26.5 to 40 |
33 to 50 |
40 to 60 |
50 to 75 |
60 to 90 |
75 to 110 |
| Waveguide Size |
WR-42 |
WR34 |
WR-28 |
WR-22 |
WR-19 |
WR-15 |
WR-12 |
WR-10 |
| Coupling Level (dB, Typical) |
3, 6, 10, 20, 30 and 40 |
| Coupling Flatness (dB, Maximum) |
± 0.4 |
± 0.4 |
± 0.4 |
± 0.4 |
± 0.4 |
± 0.4 |
± 0.4 |
± 0.5 |
| Insertion Loss (dB, Typical)* |
0.7 |
0.7 |
0.7 |
0.7 |
0.8 |
1.0 |
1.2 |
1.5 |
| Directivity (dB, Typical) |
20, 25, 30, 35, 40 |
| Main Line VSWR (Maximum) |
1.1:1 |
1.1:1 |
1.1:1 |
1.1:1 |
1.2:1 |
1.2:1 |
1.2:1 |
1.2:1 |
| Secondary Line VSWR (Maximum) |
1.1:1 |
1.1:1 |
1.1:1 |
1.2:1 |
1.2:1 |
1.2:1 |
1.25:1 |
1.25:1 |
|
| Contact factory for other waveguide size or coupling level needs. * Insertion loss is defined as the power loss in addition to the coupling loss. |
| |
| |
| HOW TO ORDER: |
 |
| |
| Example:To order a coupler with F1 at 20GHz and F2 at 21 GHz with coupler level of 20dB and a 15dB Minimum directivity, specify MDC-20212015-XX. |
| |
